Summary & Key Takeaways
This comprehensive guide clearly explains the critical differences between voltage gain and power gain in amplifiers, including their formulas, calculations, real-world examples, and when to prioritize each.
- Voltage Gain (Av): Measures the increase in signal voltage amplitude ideal for pre-amplifiers and signal clarity.
- Power Gain (Ap): Measures the increase in total energy delivered essential for driving speakers, transmitters, and other loads.
- Key Insight: High voltage gain does not automatically mean high power gain; impedance and current capability play a major role.
- Direct Answer: Use voltage gain for early-stage signal processing and precision; use power gain for output stages that need to perform physical work.
Table of Contents
- Direct Answers
- 1. What Exactly is “Gain” in Amplifiers?
- 2. Voltage Gain (Av): The Precision Metric
- 3. Power Gain (Ap): The “Workhorse” Metric
- 4. A Practical Example: Amplifying a Sensor Signal
- 5. The Relationship Between Voltage Gain and Power Gain
- 6. Real-World Applications and Industry Standards
- 7. Comparison Summary: Voltage Gain vs. Power Gain
- Conclusion
- Frequently Asked Questions (FAQ)
Direct Answers:
1. Voltage Gain (Av) measures how much an amplifier increases the voltage amplitude of a signal. It is primarily used in pre-amplifiers and early stages where the goal is signal clarity and overcoming noise.
2. Power Gain (Ap) measures how much an amplifier increases the total power delivered to a load. It is critical in power amplifiers where the signal must drive real-world devices like speakers or antennas.
Voltage Gain vs. Power Gain:
In the world of electronics and audio engineering, mastering the difference between these two types of gain is essential for designing effective amplifiers whether for high-fidelity audio systems, guitar amps, or advanced medical devices.
Gain is the core principle behind amplification: transforming a weak input signal into a stronger output. However, “strength” can mean different things depending on the context voltage for signal clarity or power for driving real world loads like speakers.
This in-depth guide explores the definitions, mathematical formulas, practical calculations, real-world examples, and applications of voltage gain and power gain. We’ll also cover their relationship, common misconceptions, and best practices to help you optimize npn amplifier performance.
1. What Exactly is “Gain” in Amplifiers?
Gain is a dimensionless ratio (or expressed in decibels) that quantifies how much an amplifier boosts a signal. It compares the output signal to the input signal, showing the multiplication factor applied by the circuit.
Think of a megaphone: a quiet whisper (input) becomes a loud shout (output). In electronics, gain amplifies tiny signals from microphones, sensors, or instruments to levels suitable for processing, recording, or driving speakers.
2. Voltage Gain (Av): The Precision Metric
Voltage gain is the most frequently referenced type of gain, particularly in early amplification stages like preamplifiers. It specifically measures the increase in signal voltage amplitude, making weak signals easier to process without necessarily delivering high power.
The Formula for Voltage Gain
The voltage gain is calculated as:
Av
=
Vout
Vin
Where:
- Voutis the output voltage
- Vinis the input voltage
Why Voltage Gain Matters
In applications like microphone preamps or sensor interfaces, the primary goal is to boost voltage to improve signal-to-noise ratio and overcome interference. High voltage gain ensures the signal is “readable” for downstream components without clipping or distortion.
3. Power Gain (Ap): The “Workhorse” Metric
Power gain focuses on the total energy transferred to the load. Since power is the product of voltage and current (
P = V × I), an amplifier with high voltage gain but low current capability will have limited power gain.
The Formula for Power Gain
Power gain is defined as:
Ap
=
Pout
Pin
Where:
- Poutis the output power
- Pinis the input power
Power can also be expressed as
P = V2R, highlighting how impedance matching affects power transfer.
Why Power Gain Matters
Power gain is crucial in output stages (power amplifiers) where the signal must perform physical work, such as driving speakers, transmitting radio signals, or actuating devices. Insufficient power gain causes the signal to weaken or distort under load.

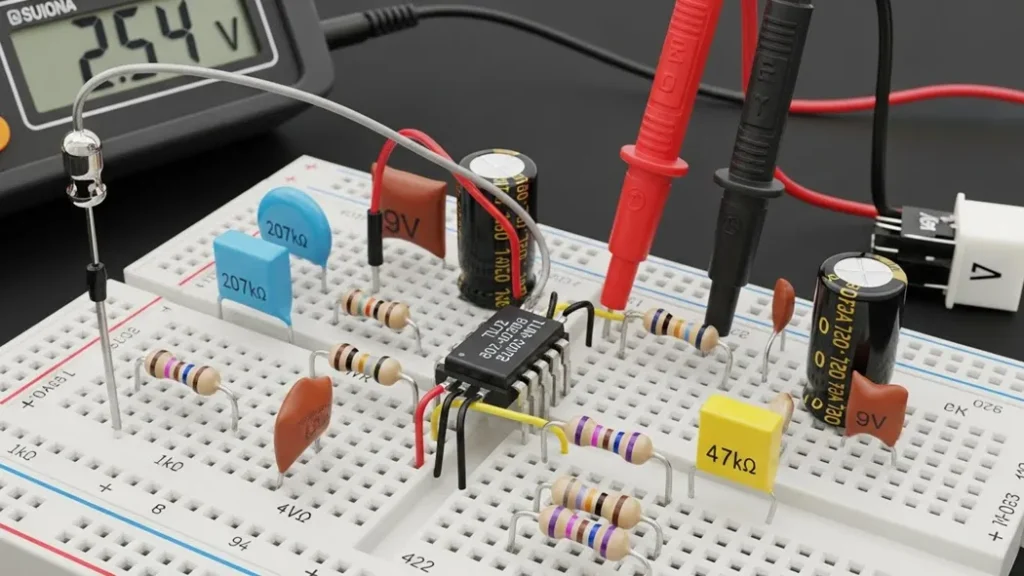

4. A Practical Example: Amplifying a Sensor Signal
Consider a sensor producing a weak 10 mV (0.01 V) signal with 1 μW input power. After passing through a transistor amplifier:
- Output voltage: 1 V
- Output power delivered to load: 10 mW
Calculating Voltage Gain
Av
=
1
0.01
=
100
In decibels:
20 × log10(100) = 40 dB
Calculating Power Gain
Ap
=
10
0.001
=
10,000
This example shows how voltage can increase 100× while power increases 10,000× (often due to impedance differences).
5. The Relationship Between Voltage Gain and Power Gain
A common myth is that high voltage gain always equals high power gain—this isn’t true. For instance, an emitter follower (common collector) circuit has
Av ≈ 1(no voltage increase) but high current gain, leading to substantial power gain.
These “buffer” stages are widely used in premium audio equipment to provide the “muscle” needed to drive low-impedance loads without degrading signal quality.
6. Real-World Applications and Industry Standards
- Audio Engineering: Proper “gain staging” manages voltage gain across multiple stages to minimize noise and avoid clipping.
- Telecommunications: Standards like IEEE 1515 define amplifier gain for reliable wireless signal transmission.
- Medical Electronics: ECG amplifiers require extremely high voltage gain to amplify microvolt-level heart signals for clear monitoring.
7. Comparison Summary: Voltage Gain vs. Power Gain
| Feature | Voltage Gain (Av) | Power Gain (Ap) |
|---|---|---|
| Primary Focus | Signal Amplitude (Voltage) | Energy Delivery (Power) |
| Formula | Vout / Vin | Pout / Pin |
| Common Applications | Pre-amps, Sensors, Microphones | Power Amps, Speakers, RF Transmitters |
| Decibel Calculation | 20 × log10(Av) | 10 × log10(Ap) |
Conclusion
Mastering the distinction between voltage gain and power gain is fundamental to electronics and amplifier design. Voltage gain ensures signal precision and clarity, while power gain delivers the energy needed for real-world interaction. Balancing both leads to clean, powerful, and distortion-free performance in any system.Explore more quantitative Performance Metrics of amplifiers.
Frequently Asked Questions (FAQ)
Can an amplifier have a voltage gain of less than 1?
Yes, this is called attenuation. Some circuits (like buffers) have voltage gain ≈ 1 but provide significant power gain through current amplification.
Why do we use decibels (dB) to express gain?
Human perception of sound and light is logarithmic, and dB compresses large ratios (e.g., 10,000×) into manageable numbers while aligning with perceptual scales.
Does higher gain always mean better sound quality?
No. Excessive gain introduces noise and distortion. The ideal is the minimum gain needed for desired output level with the lowest noise floor.
